- Industrial Standard 1" × 1" Package
- Wide 2:1 Input Voltage Range
- Fully Regulated Output Voltage
- I/O Isolation 1500 VDC
- Operating Temp. Range -40℃ to +80℃
- Low No Load Power Consumption
- No Min. Load Requirement
- Under-voltage, Overload and Short Circuit Protection
- Remote On/Off Control(option)
- Shielded Metal Case with Insulated Baseplate
- Conducted EMI EN 55032 Class A Approved
- UL/cUL/IEC/EN 62368-1(60950-1) Safety Approval & CE Marking

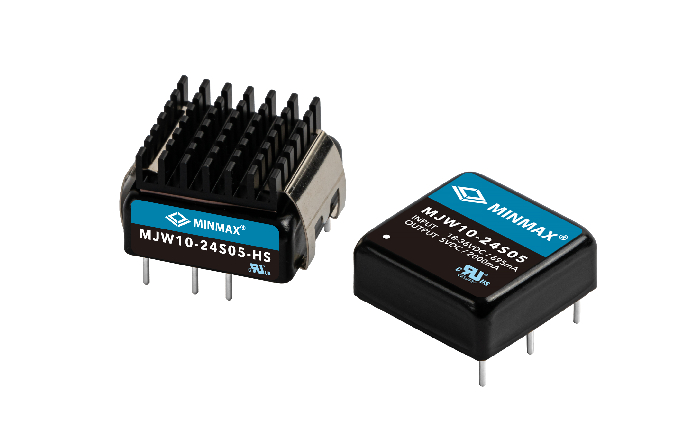

The MINMAX MJW10 series is a range of cost-optimized 10W isolated DC-DC converter within an encapsulated 1"x1" industrial standard package. There are 24 models available for 12, 24, 48VDC with wide 2:1 input voltage range and tight output voltage regulation. The MJW10 series come in a shielded metal package and conducted EMI EN 55032 Class A approved without external components. By state-of-the-art circuit topology and 89% high efficiency could be achieved allowing an operating temperature of -40℃ to +80℃ as well as low standby power consumption. Further features include remote ON/OFF, under-voltage protection, overload protection, short circuit protection and no min. load requirement as well. These DC-DC converters offer a better solution for critical space applications to reduce PCB layout demand area like battery-powered equipment, instrumentation, distributed power architectures in communication, industrial electronics, energy facilities and others.
| Output Voltage Accuracy | ±2.0% max. | ||
| Line Regulation | ±1.0% max. | ||
| Load Regulation | Single | ±0.5% max. | |
| Dual | ±1.0% max. | ||
| Ripple & Noise (20MHz) | Single | 80mVp-p typ. | |
| Dual | 100mVp-p typ. | ||
| Efficiency | Up to 89% | ||
| I/O Isolation Voltage | 1500VDC min. | ||
| I/O Isolation Capacitance | 2000pF max. | ||
| Operating Ambient Temp. Range | -40°C to +80°C (See Derating Curve) | ||
| I/O Isolation Capacitance | 2000pF max. | ||
| Short Circuit Protection | Continuous (Auto. Recovery) | ||
| Remote ON/OFF | Enable High | ||
| Case Material | Metal (6 side shielded with insulated baseplate) | ||
| Safety Approval | UL/cUL/IEC/EN 62368-1(60950-1), CB-Report, CE Marking | ||
