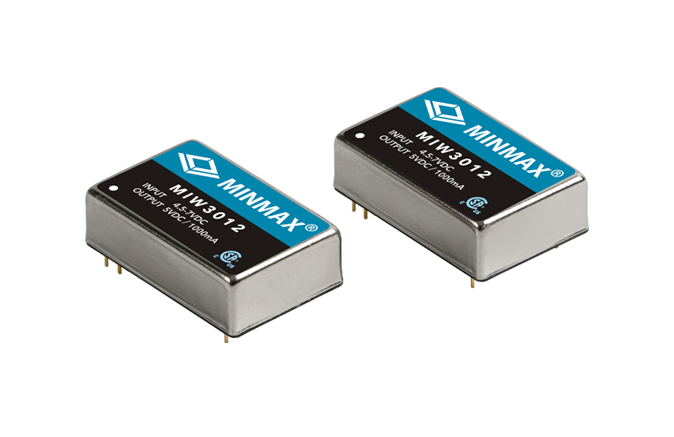

MIW3000 Series
6W DC-DC Converters
Features
- Industrial Standard DIP-24 Package
- Encapsulated 6W Converter
- Wide 2:1 Input Range
- Wide Operating Ambient Temp. Range
- Under-voltage, Overload and Short Circuit Protection
- I/O-isolation 1500VDC
- Meets EMI EN 55022 Class A
- UL/cUL 60950-1 Safety Approval
OVERVIEW
The MIW3000 series is a 6W isolated DC-DC converter family in an industrial standard DIP-24 package, suitable for a wide range of industrial and embedded power applications. It offers a wide 2:1 input voltage range with fully encapsulated construction to enhance robustness and reliability in harsh environments. With 1500 VDC I/O isolation, a wide operating ambient temperature range, and comprehensive protection features including under-voltage, overload, and short circuit protection, the MIW3000 series ensures stable and safe system operation. Compliance with EN 55022 Class A EMI standards and UL/cUL 60950-1 safety approvals further makes it a solid, ready-to-integrate choice for cost-effective and dependable board-level power solutions.
Specifications
| Output Voltage Accuracy | ±1.0% max. |
| Line Regulation | ±0.3% max. |
| Load Regulation | ±0.3% typ. |
| Ripple & Noise (20MHz) | 50mVp-p typ. |
| Efficiency | Up to 86% |
| I/O Isolation Voltage | 1500VDC min. |
| I/O Isolation Capacitance | 380pF typ. |
| Operating Ambient Temp. Range | -40℃ to +85℃ (See Derating Curve) |
| Short Circuit Protection | Continuous (Auto. Recovery) |
| Case Material | Metal With Non-Conductive Baseplate |
| Safety Approval | UL/cUL 60950-1 recognition (CSA certificate) |
